Description

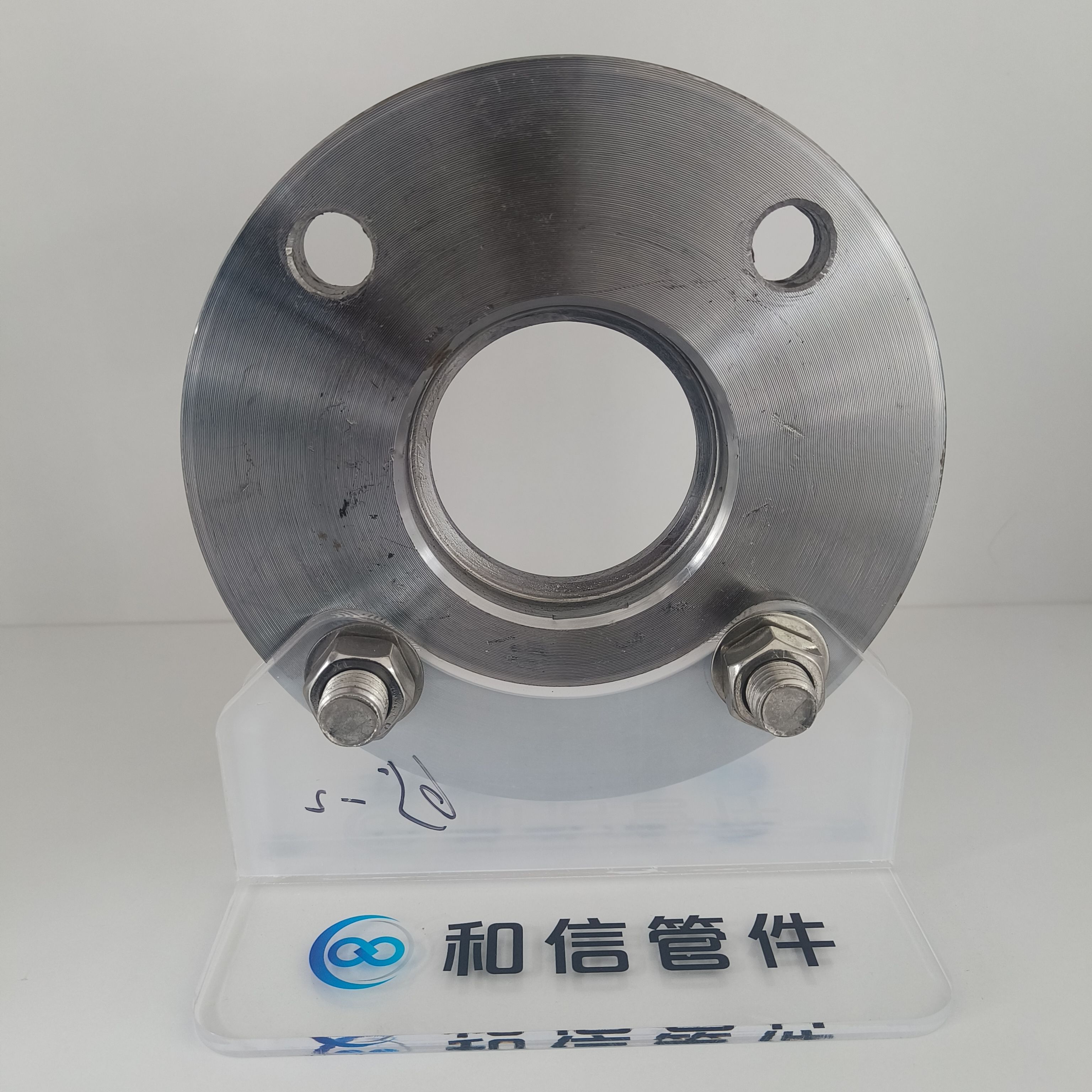

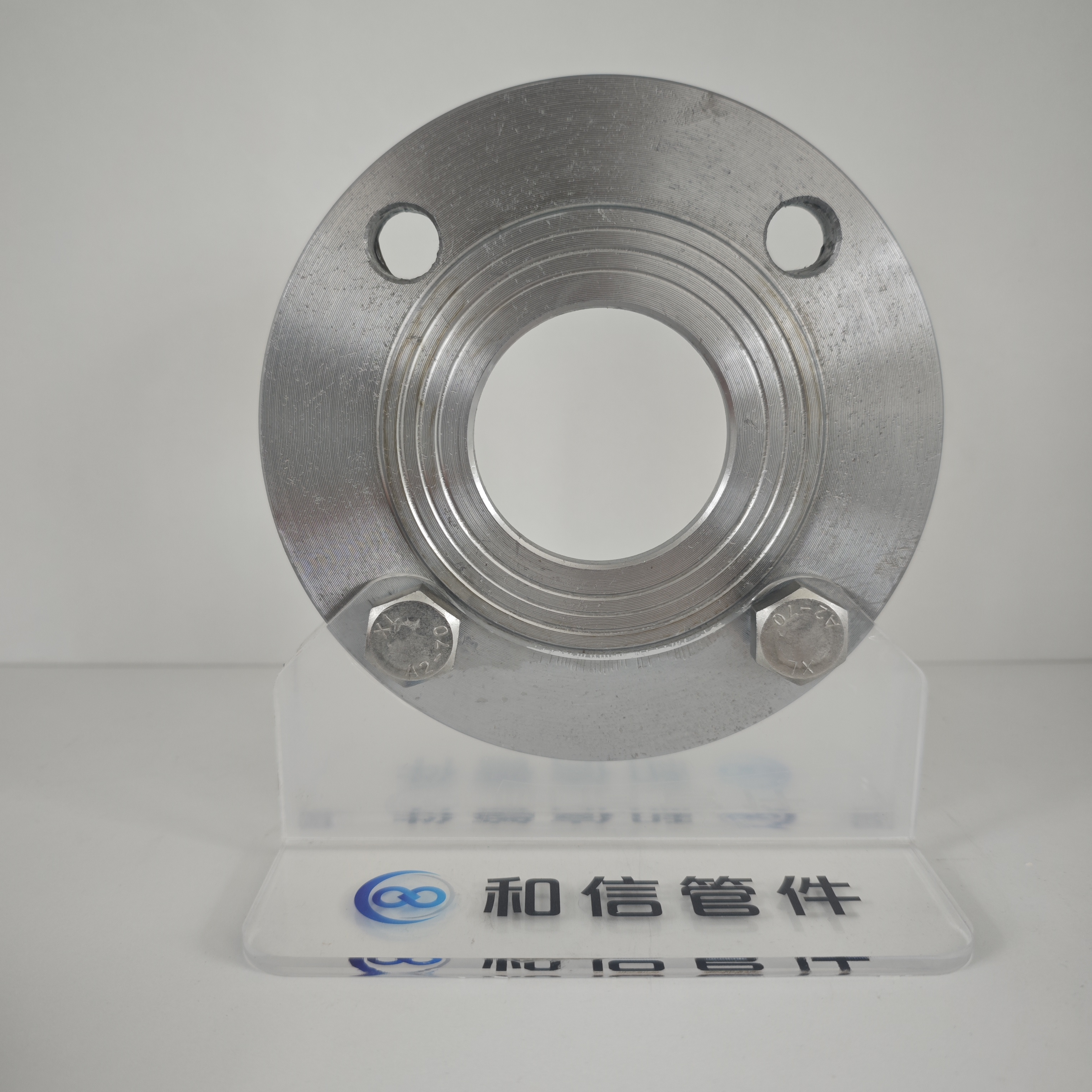

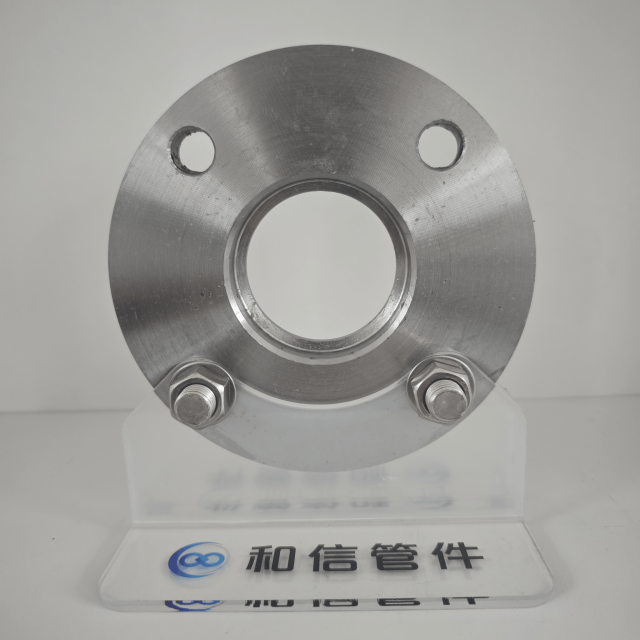

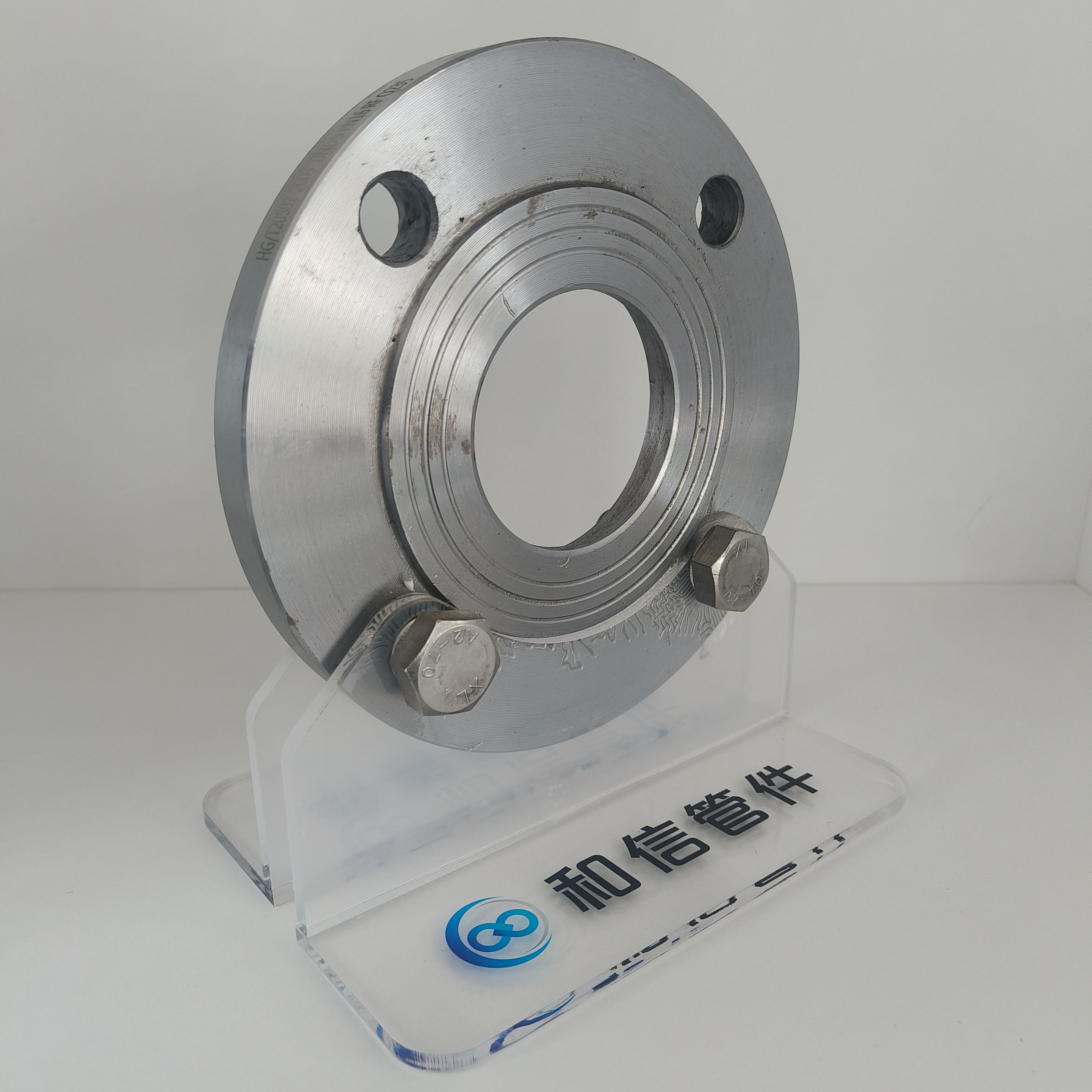

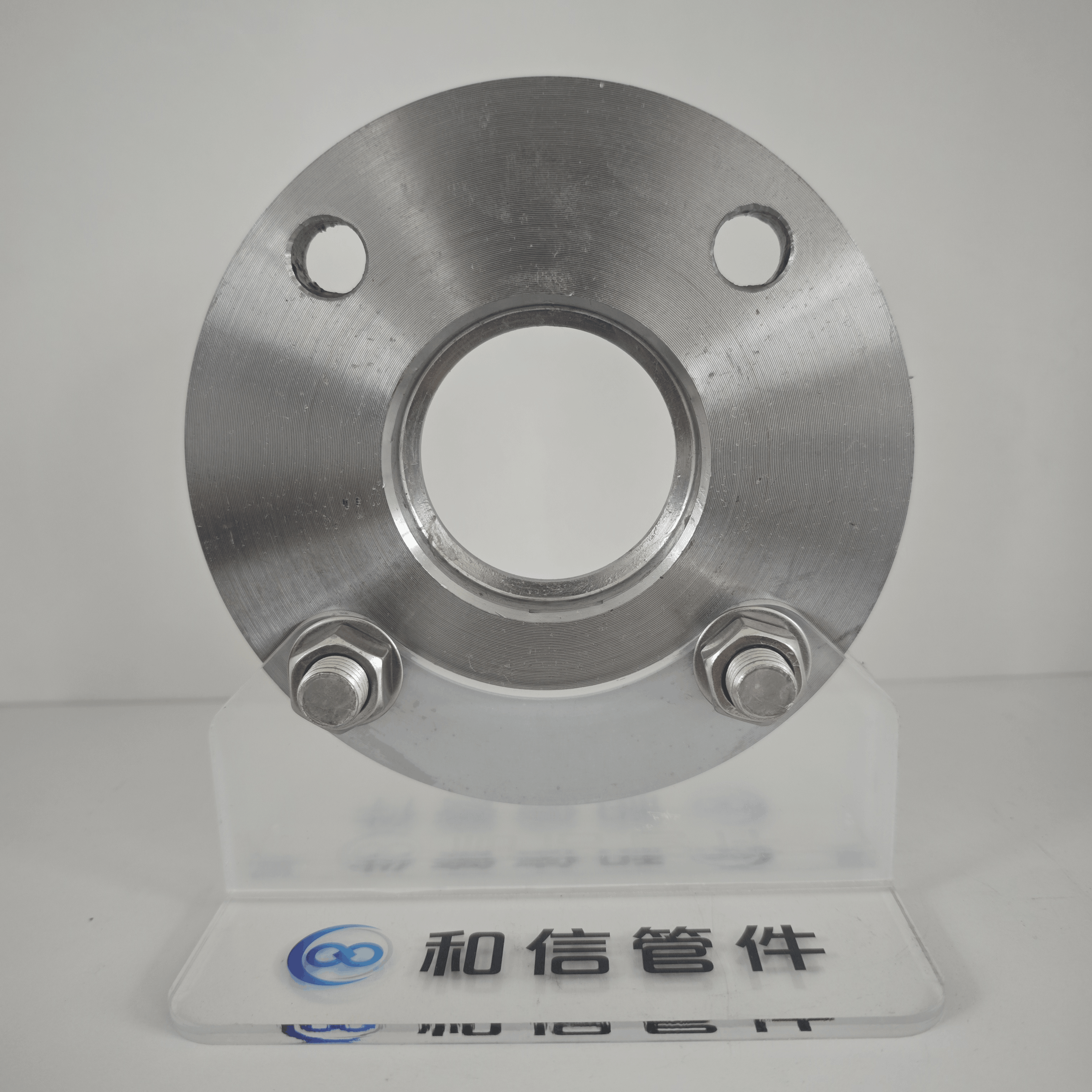

Product Name: Butterfly Valve Flange (Steel butterfly valve flange)
Product Description: This is a steel flange specially used for connecting butterfly valves. It is generally a component of the valve body of double-flanged butterfly valves, or serves as a connecting flange for wafer-type butterfly valves. It complies with the HG/T20592-2009 (European system) standard.
Specifications:
- Nominal Size: DN65
- Pressure Class: PN16
- Face Type: RF (Raised Face)
- Material: A105 (Carbon Steel Forging)
Raw Material: Made of A105 carbon steel forgings, which feature excellent mechanical properties and machinability. Butterfly valve flanges are relatively thin, with bolt holes designed as through holes or threaded holes, requiring high material uniformity and structural strength.
Production Process: Forging blank cutting → Normalizing heat treatment → Rough turning of inner and outer circles and end faces → Precision turning of sealing surface (RF face with water grooves machined) → Drilling of bolt holes (ensuring hole quantity, diameter and center distance meet standard requirements) → Machining of valve body connecting spigot or threads (special structures matching valve bodies are available for dedicated butterfly valve flanges) → Deburring → Surface treatment (sandblasting followed by anti-rust primer and topcoat painting) → Dimension inspection (key inspections include bolt hole position tolerance, sealing surface flatness and thickness) → Trial assembly with valve body (if applicable) → Marking → Packaging.
Application Fields: Widely used in butterfly valve installation of water treatment, heating, ventilation and air conditioning (HVAC), fire protection, water supply and drainage, gas, electric power, shipbuilding and other systems. The PN16 class is applicable to medium and low pressure pipeline systems.
Temperature and Pressure Resistance: A105 material, PN16 pressure class. The nominal pressure is 1.6 MPa at 20°C. Its operating temperature range is generally from -29°C to +425°C. Within this range, the allowable working pressure decreases as temperature rises, which shall be referred to the pressure-temperature rating table specified in HG/T20592 standard. Butterfly valve flanges are usually matched with butterfly valves equipped with rubber or polymer valve seats. It should be noted that the temperature limit of valve seat materials may be lower than that of the flange itself.
Advantages of Hebei Hexin Pipe Fitting Co., Ltd.:
1. Specialization in valve flanges: Profound understanding of special requirements of flanges matched with various valves including butterfly valves, gate valves and ball valves, such as spigot dimensions and bolt hole configurations.
2. High precision guarantee: Processed by high-precision CNC equipment to ensure matching accuracy between flanges and valves and prevent leakage.
3. Mass production capacity: Equipped with efficient mass production lines to guarantee product quality and delivery time amid high demand for butterfly valve flanges.
4. Excellent surface treatment: Paint coating with strong adhesion, outstanding corrosion resistance and fine appearance.
5. Supporting services: Supplying supporting bolts, nuts and gaskets as well as professional installation guidance.
Examples of Production Scope:
- Standards: HG/T20592 (European standard), HG/T20615 (American standard), GB/T 9113, JB/T.
- Nominal Size: DN32 ~ DN2000
- Pressure Class: PN6, PN10, PN16, PN25, PN40
- Materials: A105, Q235B, 304, 316, etc.
- Face Types: RF, FF
- Special Machining: Customizable machining of valve connecting structures including spigots, grooves and threaded holes.
- Coatings: Galvanization, epoxy resin spraying, polyester powder coating, etc.
